LCD/VFD System
The appearance of LCD (Liquid Crystal Display) / VFD (Vacuum Fluorescent Display) is more colorful and vivid, giving a luxurious looking to your vehicle.

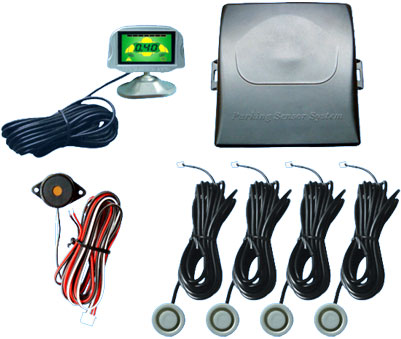

52B Series
System Composition
|
Model
|
Composition
|
|
QZ-2052B
|
2 sensors/control box/buzzer/numeric LCD display
|
|
QZ-3052B
|
3 sensors/control box/buzzer/numeric LCD display
|
|
QZ-4052B
|
4 sensors/control box/buzzer/numeric LCD display
|
Sensors Applicable: All types
Control Boxes Applicable: CB-04, CB-05
Audible Distance Indication
|
1.50 to 0.80m
|
Bi, Bi, Bi
|
|
0.80 to 0.40m
|
Bi Bi BiBi (the closer, the faster)
|
|
0.40 to 0m
|
Bi...(solid beeping)
|
Visual Distance Indication
|
Distance
|
Visual Alert
|
|
3.00 to 0.35m
|
3 digits distance numeric display
|
|
0.35 to 0m
|
Display 000
|
Waving curves indicating orientation of obstacles
General Specification
|
Working Voltage
|
10 to 15V
|
|
Working Temperature
|
-30℃to 70℃
|
|
Current Consumption
|
<100mA
|
|
Acoustic Volume
|
>85dB at 10cm
|
|
Response Time
|
300ms
|
|
Ultrasonic Frequency
|
40KHz
|
