Products
Voice Indication System
Specially designed voice speaker can release human voice to notify the driver of obstacle distance. The humanized system is more amiable and friendly.
00S Series

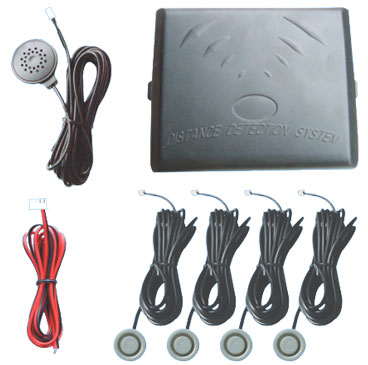

System Composition
|
Model
|
Composition
|
|
QZ-2000S
|
2 sensors/control box/voice speaker
|
|
QZ-3000S
|
3 sensors/control box/voice speaker
|
|
QZ-4000S
|
4 sensors/control box/voice speaker
|
Sensors Applicable: All types
Control Boxes Applicable: CB-07, CB-08, CB-09
Audible Distance Indication
|
1.50 to 0.80m
|
Dang, Dang, Dang
|
|
0.80 to 0.40m
|
Dang Dang DangDang (the closer, the faster)
|
|
0.40 to 0m
|
Dang...
|
Human voice distance report at 1.2m, 0.8m, 0.6m or 4, 3 and 2 feet
General Specification
|
Working Voltage
|
10 to 15V
|
|
Working Temperature
|
-30℃to 70℃
|
|
Current Consumption
|
<100mA
|
|
Acoustic Volume
|
>85dB at 10cm
|
|
Response Time
|
300ms
|
|
Ultrasonic Frequency
|
40KHz
|
