Voice Indication System
Specially designed voice speaker can release human voice to notify the driver of obstacle distance. The humanized system is more amiable and friendly.
54S Series

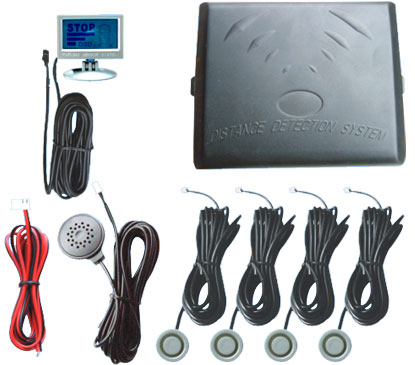

System Composition
|
Model
|
Composition
|
|
QZ-2054S
|
2 sensors/control box/voice speaker/mini numeric LCD display
|
|
QZ-3054S
|
3 sensors/control box/voice speaker/mini numeric LCD display
|
|
QZ-4054S
|
4 sensors/control box/voice speaker/mini numeric LCD display
|
Sensors Applicable: All types
Control Boxes Applicable: CB-07, CB-08, CB-09,
Audible Distance Indication
|
1.50 to 0.80m
|
Dang, Dang, Dang
|
|
0.80 to 0.40m
|
Dang Dang DangDang (the closer, the faster)
|
|
0.40 to 0m
|
Dang...
|
Human voice distance report at 1.2m, 0.8m, 0.6m or 4, 3, 2 feet
Visual Distance Indication
|
Distance
|
Visual Alert
|
|
3.00 to 0.35m
|
Real distance numeric display
|
|
0.35 to 0m
|
Display 000
|
Waving curves indicating orientation of obstacles
General Specification
|
Working Voltage
|
10 to 15V
|
|
Working Temperature
|
-30℃to 70℃
|
|
Current Consumption
|
<100mA
|
|
Acoustic Volume
|
>85dB at 10cm
|
|
Response Time
|
300ms
|
|
Ultrasonic Frequency
|
40KHz
|
