Front & Rear System
Sensors are installed in both front and rear bumpers providing protection whenever you drive forward or in reverse. The system is connected to both reversing light and ACC for power supply. When engine is activated, front sensors start to work. Buzzer turns mute automatically if obstacles keep stationary or move farther. When reverse gear is engaged, the front sensors will stop working and the rear sensors will be activated.
FR51B Series

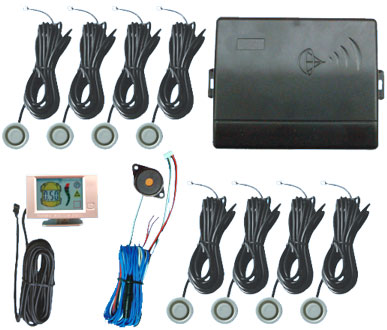

System Composition
|
Model
|
Composition
|
|
QZ-4251B
|

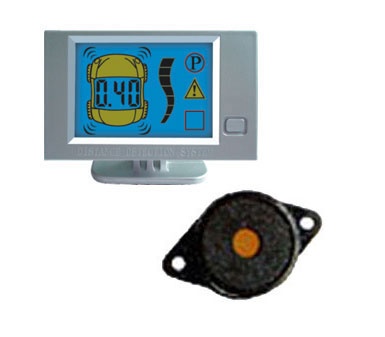

4 rear sensors/2 front sensors/control box/buzzer/numeric LCD display
|
|
QZ-4451B
|
4 rear sensors/2 front sensors/control box/buzzer/numeric LCD display
|
Sensors Applicable: All types
Control Boxes Applicable: CB-07, CB-08, CB-09
Audible Distance Indication
| Rear | Front | ||
|
1.50 to 0.80m
|
Bi, Bi, Bi
|
1.50 to 0.80m
|
Bi, Bi, Bi
|
| 0.80 to 0.40m | Bi Bi BiBi (the closer, the faster) | 0.80 to 0.40m | BiBi, BiBi, BiBi |
| 0.40 to 0m | Bi… (solid beeping) | 0.40 to 0m | BiBiBi, BiBiBi, BiBiBi |
Visual Distance Indication
| Rear | Front | ||
|
3.00 to 0.35m
|
3 digits distance numeric display
|
3.00 to 0.35m
|
3 digits distance numeric display
|
| 0.35 to 0m | Display 000 | 0.35 to 0m | Display 000 |
| Waving curves indicating orientation of obstacles | Waving curves indicating orientation of obstacles | ||
General Specifications
|
Working Voltage
|
10 to 15V
|
|
Working Temperature
|
-30℃to 70℃
|
|
Current Consumption
|
<100mA
|
|
Acoustic Volume
|
>85dB at 10cm
|
|
Response Time
|
300ms
|
|
Ultrasonic Frequency
|
40KHz
|
